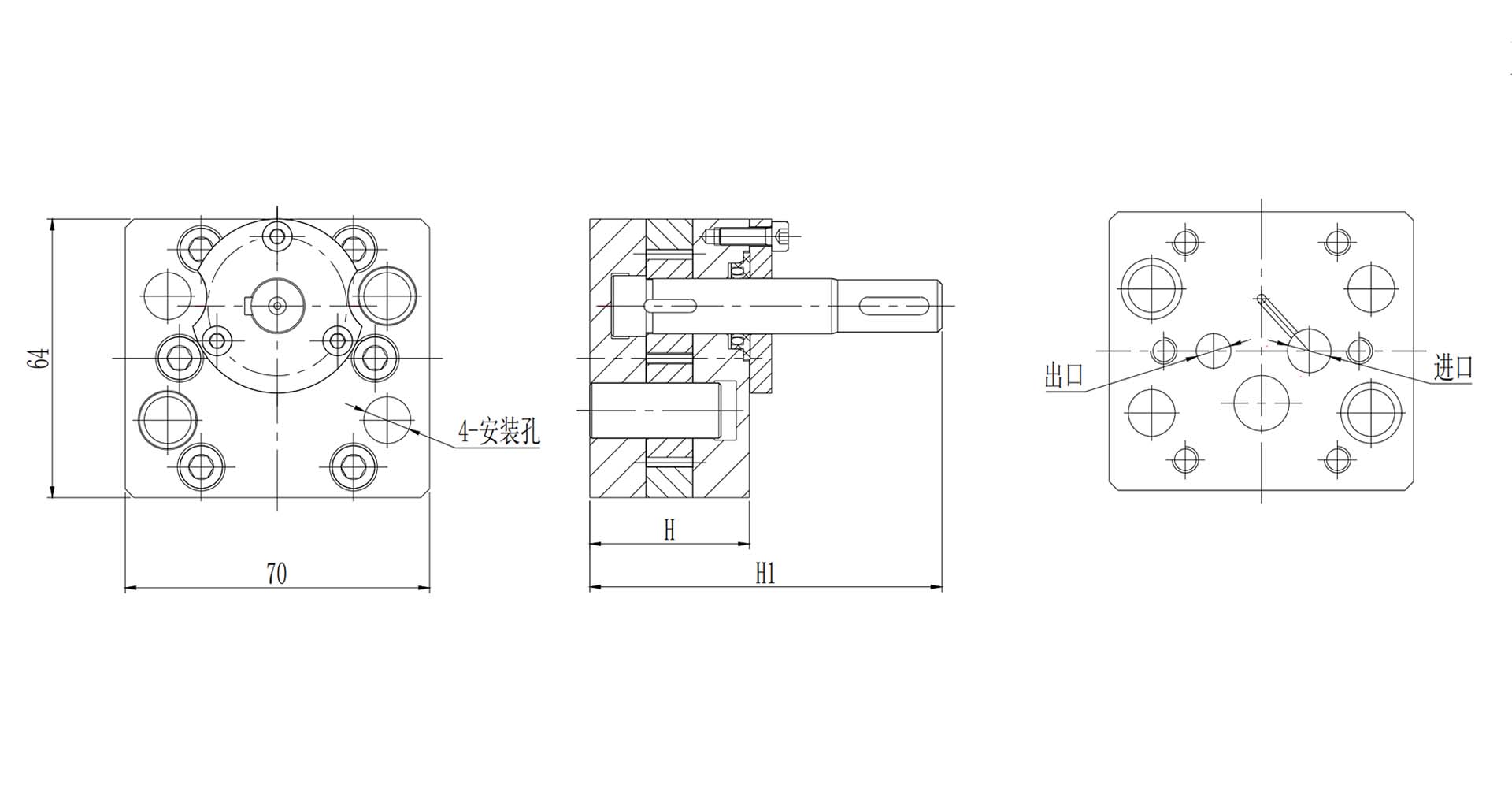

A1 Type (0.6～3.6 cc/rev)

• Inlet: 1

• Outlet: 1

• Displacement: 0.6~3.6 cc/rev

• Operating Pressure: ≤10 MPa

• Operating Temperature: ≤220°C (customizable for higher temperatures)

• Temperature Tolerance: Dependent on the material of the sealing rings and pump body

• Rotational Speed: 10-80 r/min

• For high-viscosity or non-lubricating fluids: Reduce speed and pressure during operation

Applications: Dispensing, potting, coatings, paints, pressurization, metering, etc.

Media: Adhesives, hot melt adhesives, polyurethanes, coatings, inks, oils, resins, cleaning agents, organic solvents, various additives, etc.

• For special media: Replacement of the pump body material may be required.
